2D Desktop Barcode Scanner
- Compatible System – Windows, Mac OS, POS Cash Register, Linux.
- Desktop Hand-Free design free your hand and improve the working efficiency.
- Plug and play, no need for any driver or software. Easy installation with USB cable.
- Extra large scanning angle, identify screen code, incomplete code and fuzzy code easily.
- Super decoding ability, fast to scan both printed and mobile phone screen 1D/2D barcodes.
- Auto sense ,when the scanner reaches the barcode ,it will automatically decoding the barcode.

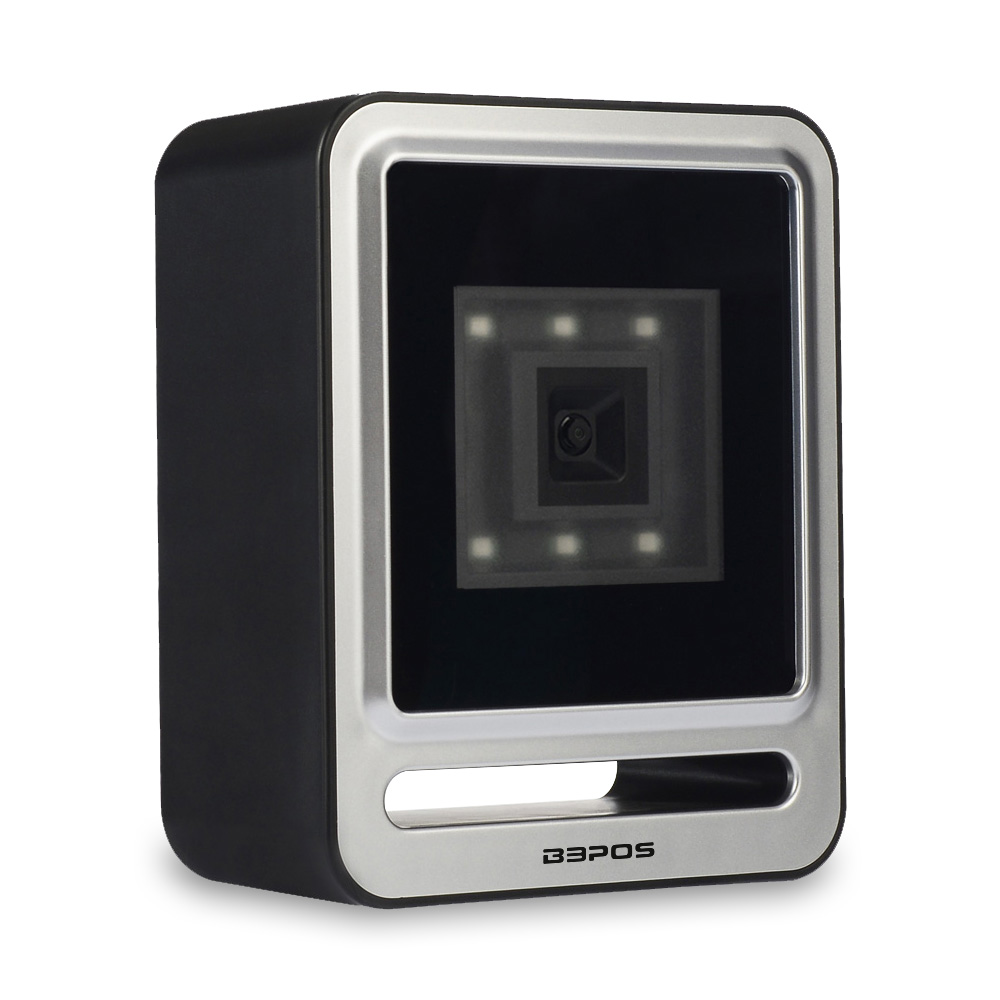

PRODUCT NAME: Automatic Sense 2D Desktop Barcode Scanner
MODEL NUMBER: B3POS-9200D
Product Detail
B3POS-9200D 2D Omnidirectional Handsfree Desktop Barcode Scanner
- Scanning angle：rotate Roll:0-360 degree, tilt pitch: ±65 degrees, deflect SKEW: ±65
- Decode Capability：1D Code：Code 39, Full ASCII Code 39, Code 32, Code 128, Code 93,Code 11, Code bar/NW7, All UPC/EAN/JAN code (EAN-13,EAN-8, UPC-A, UPC-E, EAN-128), Interleave 2 of 5, STD 2of 5, Industrial 2 of 5, matrix 2 of 5, Chinese Postage Code,IATA, MSI/PLESSY, Italian Pharmacy Code, Industrial 2 of 5,BC-412, etc.
- 2D Code：QR Code, Data Matrix, PDF417, Aztec code, Maxi code, etc.
- B3POS -9100D 2D Desktop Barcode Scanner Can Read 1D/2D/QR Barcodes On Paper and Screens etc.
- Supports decode most of 1D 2D QR barcodes on labels, paper and screen
- Compatible for: Linux, Windows XP, Windows Vista,Windows 7,Vindows 8, Vindows 10, Windows Server 2003,Windows Server 2008, Windows Server 2010, etc.
Product Specification
| Product Specification: B3POS-9200D 2D Desktop Barcode Scanner | |
| Scanner parameters: | |
| Optical resolution | 640*480 ,120 fps |
| Lighting source | red LED supplement |
| Scanning speed | 2200 times/s |
| Scanning angle | rotate Roll:0-360 degree, tilt pitch: ±65 degrees, deflect SKEW: ±65 degrees |
| Sweeping barcode type | paper, thin film medium one-dimensional; mobile phone, flat screen, etc. |
| Printing contrast | 20% |
| Resolution | 4mil |
| Error rate | ≤1/2,000,000 |
| Interface type | USB:HID Keyboard(default mode), USB virtual serial port |
| IP level | up to IP54 standard |
| Trigger Mode | Handheld,Continuous,Auto-Induction |
| Prompt mode | Buzzer, LED |
| Decoding Capability | 1D：Code 39, Full ASCII Code 39, Code 32, Code 128, Code 93,Code 11, Codabar/NW7, All UPC/EAN/JAN code (EAN-13,EAN-8, UPC-A, UPC-E, EAN-128), Interleave 2 of 5, STD 2of 5, Industrial 2 of 5, matrix 2 of 5, Chinese Postage Code,IATA, MSI/PLESSY, Italian Pharmacy Code, Industrial 2 of 5,BC-412, etc. |
| 2D：QR Code, Data Matrix, PDF417, Aztec code, Maxicode, etc. | |
| Depth of field | 13mil UPC (20-120mm)
5mil Code128 (20-60mm) 10mil Code128 (20-100mm) 20mil QR (20-140mm） |
| Electrical parameters | |
| Electric voltage | 5V DC |
| Working current | 390mA(Max.),220mA(Typical) |
| Optical safety certification | ICE42471、IEC60950 |
| Electromagnetic compatibility | EN55022、EN55024 |
| Mechanical parameters | |
| Size | 110mm*53mm*120mm |
| Cable length | 2m |
| Weight | 300g |
| Enviromental parameter | |
| Working temperature | -20℃～60℃ |
| Storage temperature | -40℃～85℃ |
| Working humidity | 5%～95% |
| Drop test | 1.5m |
