2D Barcode Scanner
- Bluetooth/2.4G/Wired Mode, 3modes for option.
- Powerful decode ability, fast scanning 1D/2D barcodes.
- Supports Handheld / Continuous / Auto-Induction , 3modes for option
- Support for smart phones/tablets/computers; compatible for Windows /Android /IOS.
- Built-in 1500mAh Battery, it can support 20 hours Continuous scanning and 2 months standby after 4hours full charge.
- Support turn on or off the sound, hide/add custom prefix/suffix digits, delete character, add keyboard keys (TAB, CR&LF, etc.)
- Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical etc.
PRODUCT NAME: 2D Barcode Scanner
MODEL NUMBER: B3POS-8200DB
Product Detail

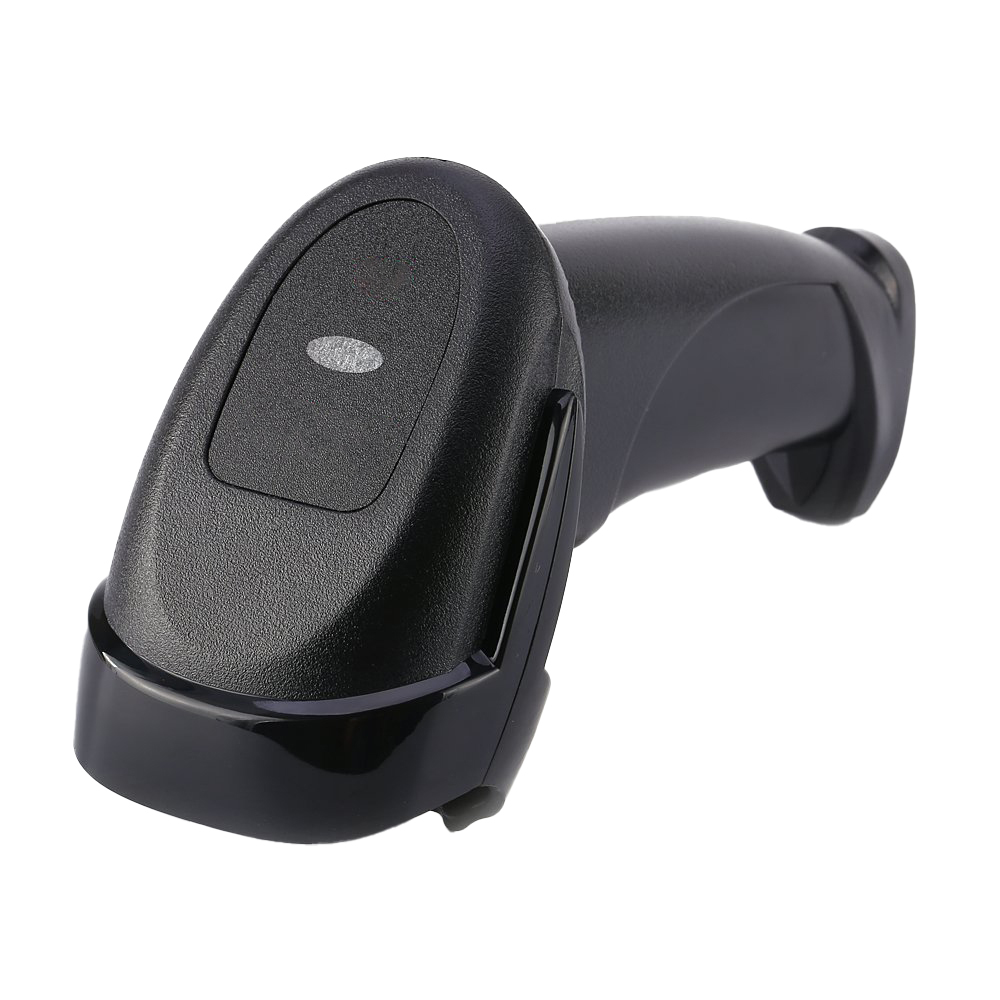

B3POS-8200DB 3 in 1 Bluetooth Wireless 2D Qr Code Reader Handheld Barcode Scanner
【3-in-1 Connection Design】The handheld barcode scanner comes with 3-in-1 Connection Design:
- Bluetooth Connection: Support HID / SPP / BLE mode, Easily connected with your laptop, PC, mobile phone, tablet, iphone, ipad, POS. the transmission distance in the obstacles environment is about 10m / 33ft.
- 4G Wireless Connection: Support RF DONGLE HID-KBW and RF DONGLE AS VIRTUAL COM mode, Connect the scanner to your device via the USB dongle, Work with Windows XP/7/8/10, Mac OS, linux. the tansmission in the environment without any obstacles can reach up to 100m / 330ft.
- USB Connection: Support USB HID-KBW and USB COM Port Emulation mode, Connect the scanner to your device via the USB cable. In wired mode, user can scan barcode while charging.
【3 Trigger Modes】
- Key Trigger Mode: Scanning light is only on when press the trigger.
- Continuous Scan Mode: Scanning light is always on when the scanner is electrified. Scanning barcode without pressing any button.
- Auto-induction mode: Scanning light is off until a barcode presented in front of the scanner. Once the barcode is detected, the scanning light will turn on automatically to read the barcode.
【2 Upload modes】
- Instant Upload Mode: Read barcodes & upload barcode straight to the file you have opened
- Storage Mode: All scanned barcode will be stored directly into the bulit-in memory of the scanner. You can upload the data to your device in batch.
Product Specification
| Product Specification: B3POS-8200DB 2D Bluetooth Barcode Scanner | ||
| Scanner parameters: | ||
| Transmission mode：Bluetooth/2.4G/Wired | Storage:100000 barcodes | |
| Distance：50m/100m/1.5m | CPU：ARM 32-bit Cortex | |
| Sensor：640*480 CMOS | Light aimer： 617nm LED | |
| Resolution ：4mil | Indication：Buzzer & LED | |
| Battery: 1500mAh | Illumination： 6500K LEDs | |
| Decoding speed：500scans/sec | Bit error rate :1/5million | |
| Button life ：5000,000 times | Printing contract ：≥25% | |
| 250Lux Depth of Field |
13mil-EAN13 | 50-240mm |
| 4mil-code39 | 50-90mm | |
| 20mil-QR | 40-280mm | |
| 10mil-PDF417 | 40-250mm | |
| Decode Capability： 1D：UPC-A，UPC-E，EAN-8，EAN-13，Code 128， Code 39，Code 93，Code 11，Interleaved 2 of 5，Matrix 2 of 5，Standard 2 of 5，Coda bar，MSI Plessey，RSS，etc. 2D：QR Code、Micro QR、Data Matrix、PDF417 etc. |
||
| Trigger Mode：Handheld,Continuous,Auto-Induction | ||
| Scanning angle：Angle of rotation360°，inclination± 65°，declination ± 60° | ||
| Working Temperature: -20℃-50℃ | Storage Temperature: -40℃-60℃ | |
| Working time ：3 to 5 days | Charging power：5V | |
| Anti inference：0-100000Lux Max | Relative Humidity: 5% ~ 95% | |
| Certificate ：CE，FCC，RoHS，IP54 | Drop test ：1.5m | |
